DC power supply 24 Volt Force-GT Series DRF-24V480W3GBA

DC power supply 24 Volt Force-GT Series DRF-24V480W3GBA

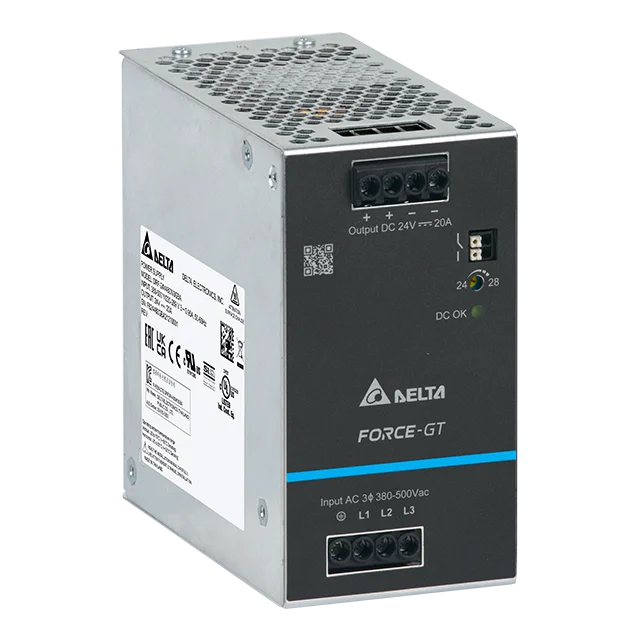

Force-GT DIN Rail Power Supply
480 W 3 Phase / DRF-24V480W3GBA

SKU DRF-24V480W1GBA-1 Categories , แบรนด์:
ติดต่อสอบถาม
ขอใบเสนอราคา
– Surge capacity (with SPD) up to 6 kV
– Universal AC input voltage range
– Built-in constant current circuit for charging applications
– Full load operating temperature up to 55°C
– Cold start at -40°C
– Ultra-Slim design
– Reduced no-load power consumption
– Built-in DC OK relay and LED indicator
– Conformal coating on PCBAs to protect against common dust and pollutants
รายการ (Spec) ค่า (Value) หน่วย (Unit)
Output voltage 24 V DC
Power supply output current 20 A
Rated power in W 480 W
phase 3 phase
MTBF > 700,000 hrs.
I/P: 3 x 400 Vac & 3 x 500 Vac, O/P: 100% load, Ta: 25°C		 –
Width 65 mm
Height 124 mm
Depth 125.3 mm
Net weight 1.2 kg
