TUNKIA TH1950 is a professional-grade solution dedicated to the testing and calibration of AC EV Charging Stations. It combines high-precision measurement with advanced protocol simulation to ensure chargers meet rigorous safety and performance standards.

Key Capabilities:

• High Precision: Measures Voltage, Current, Power, and Energy with exceptional accuracy (Accuracy Class 0.05 or 0.1), qualifying it as a laboratory standard instrument.

• Protocol Simulation: Simulates Electric Vehicle behavior via Control Pilot (CP) and Proximity Interlock (RC) signals to verify compliance with IEC 61851-1 standards.

• Signal Analysis: Features a built-in Oscilloscope to analyze CP signal waveforms, including Voltage, Duty Cycle, and Frequency, for detecting communication anomalies.

• Safety Testing: Performs essential safety checks, including Short Circuit protection and Residual Current Device (RCD) testing, to ensure user safety.

• Rugged Design: Housed in a durable Hard Case designed for field testing, featuring a large, real-time touchscreen display.

Technical Specifications & Performance:

• High-Precision Multifunction Output: Delivers stable and accurate signal outputs.
• Multimeter Calibration: Capable of calibrating high-end 7.5 and 8.5-digit multimeters.
• Current Expansion: Supports AC and DC current expansion up to 120A (with optional TA1000 unit).
• Excellent Stability: Features superior output stability with a 24-hour DCV short-term stability of ≤ 1 ppm.

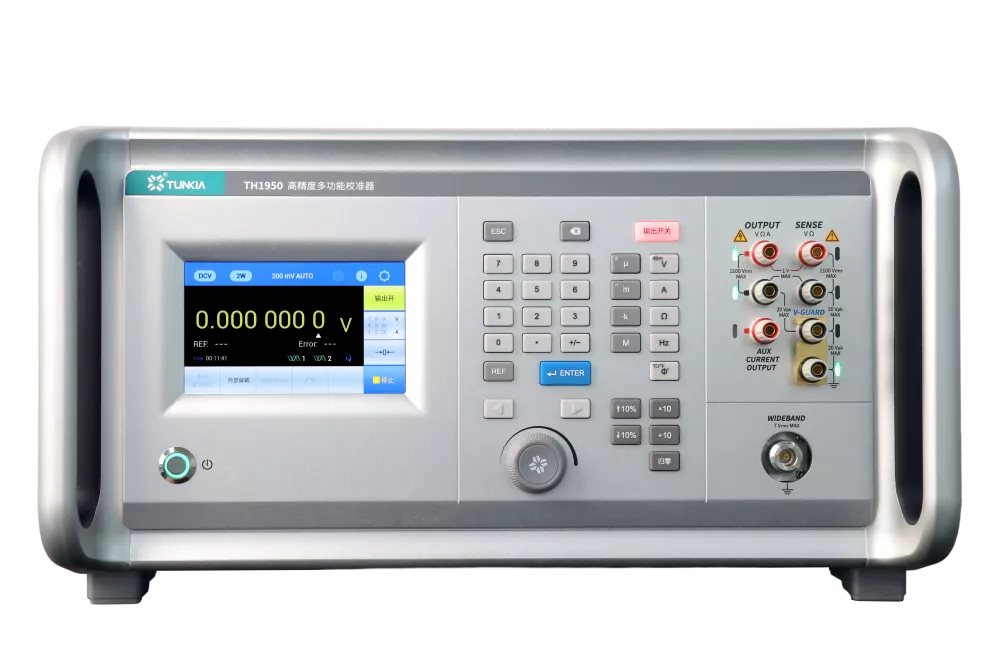

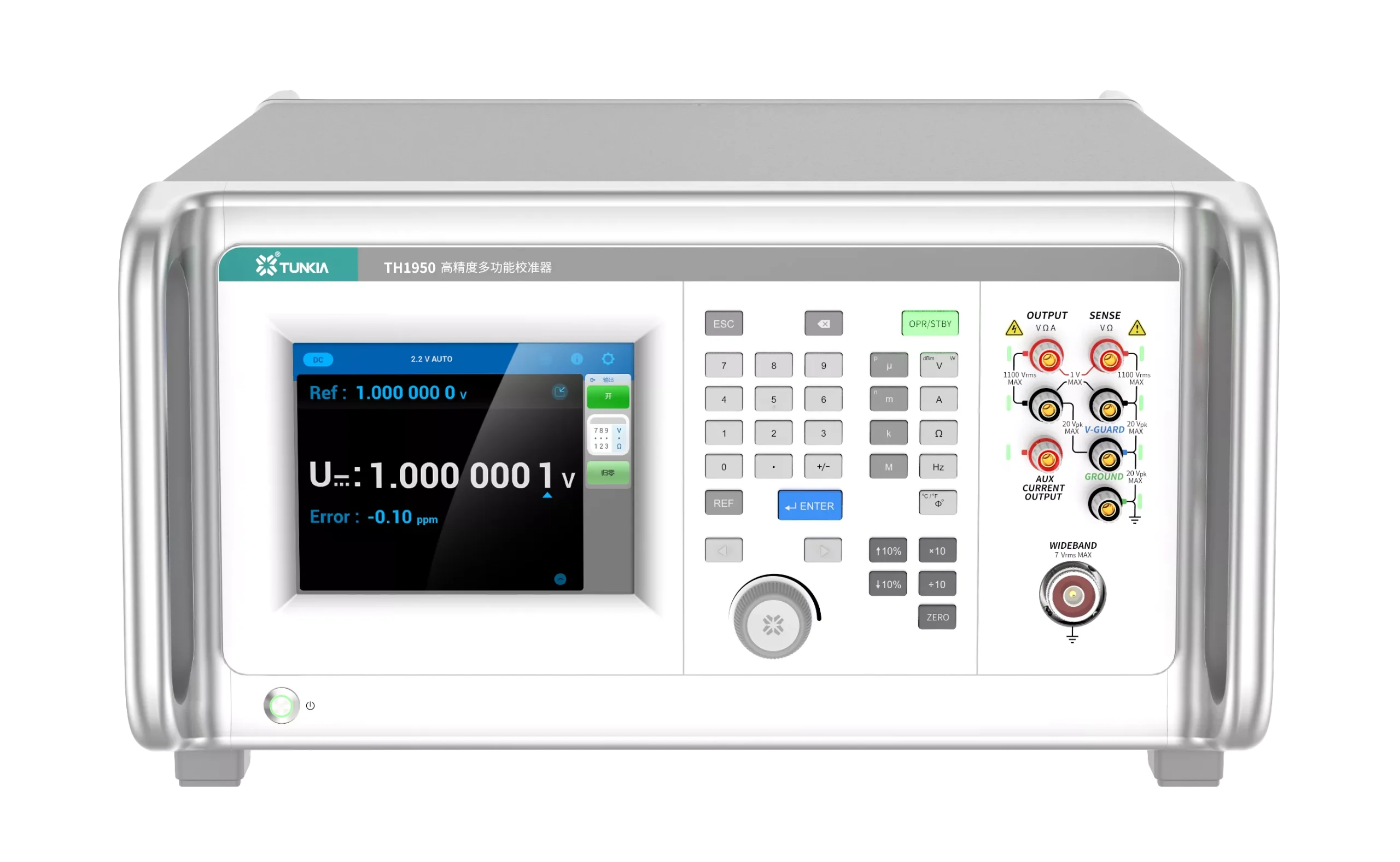

• Versatile Interface: Supports multiple operation modes including a 5-inch Touchscreen, Keypad, and Rotary Knob control.
