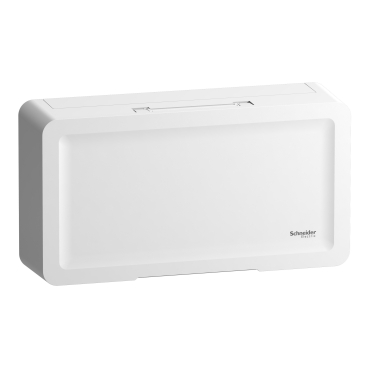

Square D EL Split Bus Consumer unit
Square D EL Split Bus Consumer unit - Image 2
Square D EL Split Bus Consumer unit - Image 3

Square D EL Split Bus Consumer unit

Square D Enclosures, Consumer Unit

Square D EL Split Bus Consumer Unit, 100 A busbar rating, Main Lug type

RCCB 40 A 30 mA

  • 4 + 4 way
  • 8 + 4 way
  • 8 + 8 way

RCCB 63 A 30 mA

  • 8 + 8 way

Categories , Brand:
CONTACT US
REQUEST A QUOTE

Square D EL

Square D EL series consumer units feature an aesthetic white design enhanced with UV-resistant additives and are engineered for ease of installation.

  • Includes knock-out cable entries on the rear, top, and bottom of the enclosure for flexible wiring.
  • Features a plug-on system for rapid and reliable installation.
  • Tested and certified in accordance with IEC 61439 standards.
  • Short-circuit withstand capacity tested at 10 kA at 240 V 50/60 Hz.
  • Enclosure constructed from high-quality steel with an epoxy powder coating (60-150 microns) to prevent corrosion.
  • Front cover manufactured from flame-retardant polystyrene with UV protection.
  • Busbars manufactured from tinned copper for superior conductivity and durability.
  • Utilizes a plug-on installation system for enhanced safety.
  • IP4X rated for dust protection.
รายการ (Spec) ค่า (Value)
Enclosure mounting Surface
Number of ways RCCB 40A 30mA
4 + 4 way
8 + 4 way
8 + 8 way
RCCB 63A 30mA
8 + 8way
Electrical connection Copper busbar connection
[In] rated current 100 A
[Ue] rated operational voltage 240 V
Network frequency 50/60 Hz
Short-circuit current 10 kA
Options for Protection device type QO miniature circuit breaker (MCB) – 2P in main incomer
QO miniature circuit breaker (MCB) – 1P in outgoer
QO miniature circuit breaker (MCB) – 3P in outgoer
QO residual current circuit breaker with overcurrent protection (RCBO) – 1P – 10 mA in outgoer
QO residual current circuit breaker with overcurrent protection (RCBO) – 1P – 30 mA in outgoer
QO residual current circuit breaker with overcurrent protection (RCBO) – 2P – 30 mA in secondary incomer
Door type Plain dolly – plastic
Door opening side Upwards
Enclosure material Phosphated cold rolled steel of 1.2 mm
Surface treatment epoxy 60…150 µm
Colour White (RAL 9003
Standards IEC 60439
TIS 1436-2540
BS 5486-13
IP degree of protection IP4X
Unit Type of Package 1 PCE
Number of Units in Package 1 1
