EL-USB-2 Data Logger

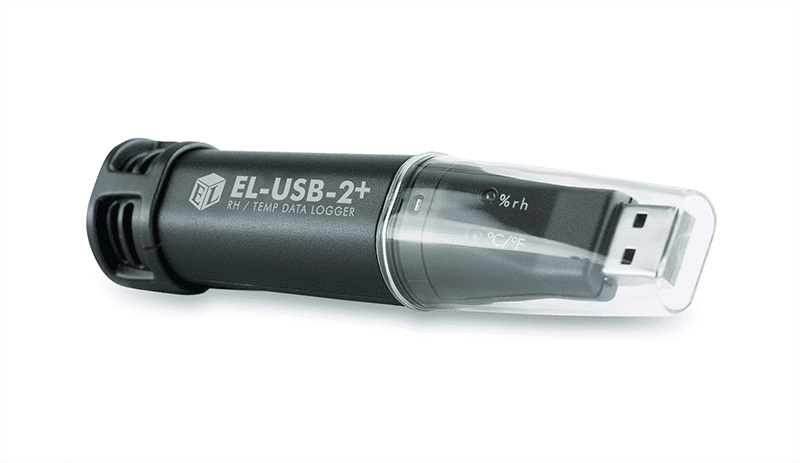

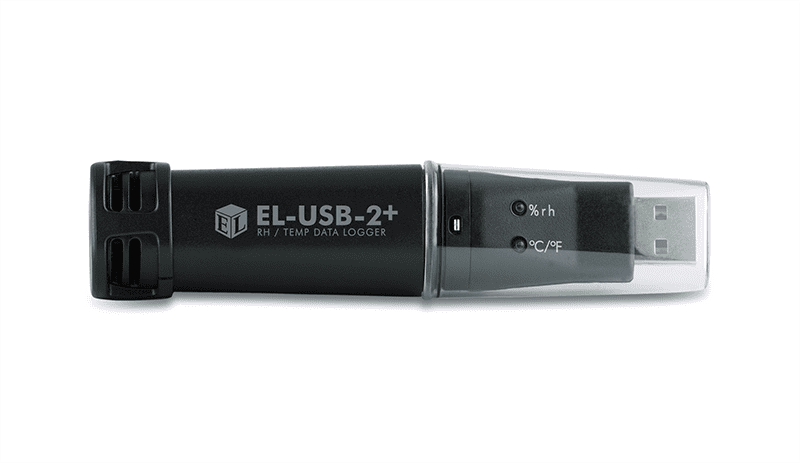

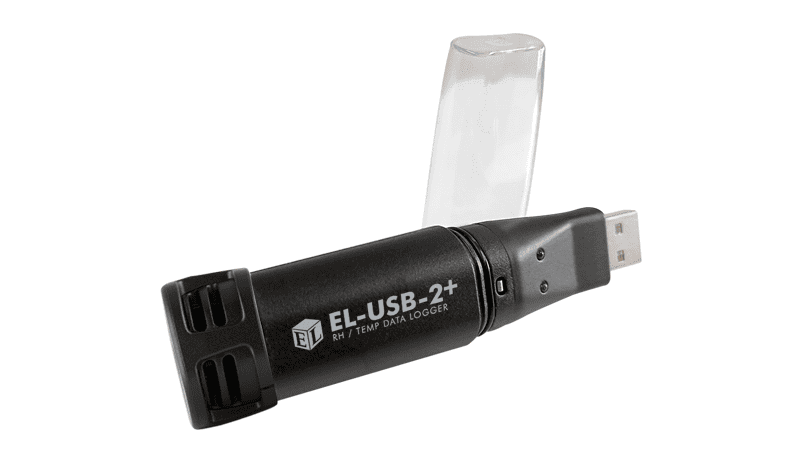

Lascar EL-USB-2 Temperature, Humidity, and Dew Point Data Logger
This standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°F) and 0 to 100% humidity (RH) range.

SKU SKU-EL-USB-2+ Categories , Brand:
CONTACT US
REQUEST A QUOTE

Lascar EL-USB-2 Temperature, Humidity, and Dew Point Data Logger
This standalone data logger measures more than 16,000 readings over a -35 to +80°C (-31 to +176°F) and 0 to 100% humidity (RH) range.

Key Features:

  • Measurement Range:
    • Temperature: -35 to +80°C (-31 to +176°F)
    • Humidity: 0 to 100% RH
  • Accuracy (Typical):
    • Temperature: ±0.55°C
    • Humidity: ±2.25% RH
  • Memory Capacity: Stores 16,382 readings per channel (Temperature & Humidity)
  • Dew Point: Automatic Dew Point calculation via software
  • Software: Compatible with EasyLog software (Free download)
  • Logging Rate: User-selectable between 10 seconds and 12 hours
  • Start Modes: Immediate, Delayed, and Push-to-Start
  • Alarms: User-programmable High and Low Alarms for both Temperature and Humidity
  • Status Indicators: Bright Red and Green LEDs for status and alarm indication

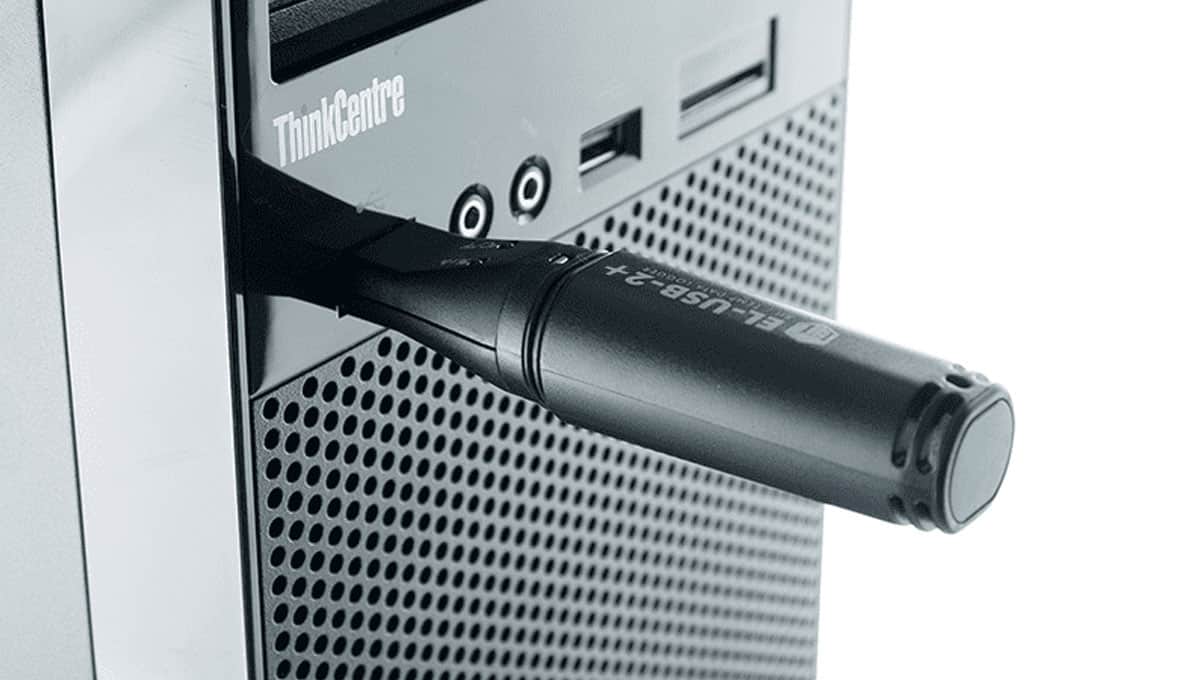

  • Connectivity: USB Interface for setup and data download
Temperature:
Measurement range -35°C to 80°C (-31°F to 176°F)
Internal resolution 0.5°C (1°F)
Accuracy (overall error) 0.45°C (0.86°F) typical (5 to 60°C)
Long term stability <0.02°C (0.04°F) / year
Relative Humidity:
Measurement range 0 to 100%RH
Internal resolution 0.5%RH
Accuracy (overall error) 2.0%RH typical (10 to 90%RH)
Long term stability <0.25%RH / year
Logging Rate User selectable between 10 seconds and 12 hours
Battery Life 3 Years
Calibration Certificate Available Separately
