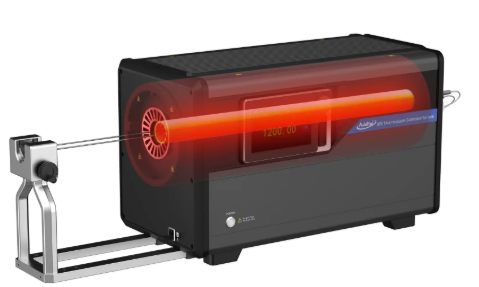

The Additel 850-1200 is a laboratory-grade horizontal calibration furnace engineered to simplify high-temperature calibration tasks. It revolutionizes the process by combining the performance of three different furnace types into one versatile instrument.
1. The 3-in-1 Concept What sets the ADT850 apart is its ability to adapt its heating profile based on the probe length and application:
- Short Probe Mode: Optimized for probes with limited immersion depth.
- Long Probe Mode: Designed for standard long-reach thermocouples.
- Annealing Mode: Specifically configured for the annealing process to improve probe accuracy before use.
2. Technical Performance
- Temperature Range: 300°C to 1200°C, covering both Base Metal (Type K, J, N) and Noble Metal (Type S, R, B) sensors.
- Stability: ±0.1°C, offering industry-leading stability at high temperatures.
- Uniformity: Multi-zone heat control ensures constant temperature across both Axial and Radial planes at ±0.25°C.
- Speed: Heats from room temperature to 1200°C in just 40 minutes, with a Quick Cool system to rapidly transition between calibration setpoints.
3. Intelligent Precision Features
- EMF Shielding: Features Additel’s patented electrical interference protection, ensuring that the millivolt (mV) readings from thermocouples are not distorted by the furnace’s heating elements.

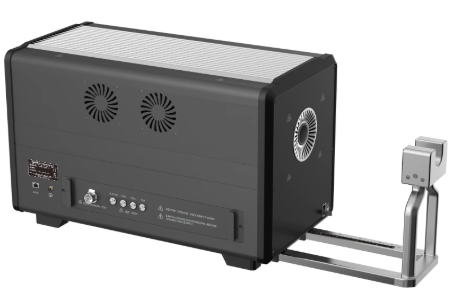

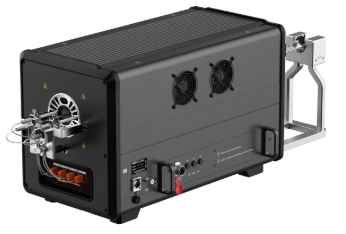

- Sliding Probe Holder: Includes an integrated sliding holder with a built-in ruler to ensure the Reference probe and the UUT (Unit Under Test) are perfectly aligned in the “sweet spot” every time.
- Internal Control: High-precision self-contained control system eliminates the need for complex external controllers.
4. Connectivity & Interface
- Display: 7-inch Color Touchscreen with an adjustable viewing angle for ergonomic use.
- Connectivity: Full support for Wi-Fi, Bluetooth, USB, and LAN. Monitor or control the furnace via a smartphone app.
- Automation: Fully compatible with Additel ACal software for 100% automated calibration and certificate generation.
Configuration Options (Inserts) You can choose from three main insert styles to match your specific workload:
- Alumina Tube (ALUM): Ideal for Noble Metal thermocouples to prevent sensor contamination.
- Metal Cup (CUPL): Best for Base Metal thermocouples, prioritizing extreme thermal uniformity.
- Blackbody: For the calibration of infrared thermometers (Pyrometers).
Specifications:
- Temperature Range: 300°C to 1200°C
