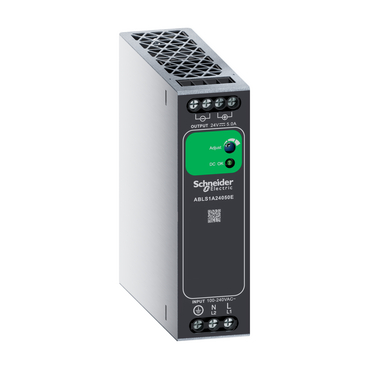

ABLS1A24050E - DC power supply 24 Volt

ABLS1A24050E – DC power supply 24 Volt

Single-phase power supply, 100…240V AC input, 24V DC output, 120W, Din-rail, IP20

SKU ABLS1A24050E Categories , Brand:
CONTACT US
REQUEST A QUOTE
– Over load protection could reach 105% to 130%
– Wide voltage range from 90 to 264VAC
– CE and UKCA marking, cULus, RoHS, and REACH certifications workable for most markets
– Restricted current protection mode for short-circuits
รายการ (Spec) ค่า (Value) หน่วย (Unit)
Output voltage 24 V DC
Power supply output current 5 A
Rated power in W 120 W
phase single phase
Meantime between failure [MTBF] 100000 h at 40 °C –
Width 16 mm
Height 125 mm
Depth 113 mm
Net weight 0.451 kg
