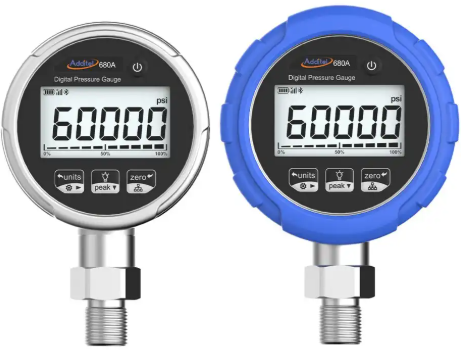

Additel 680A Series Digital Pressure Gauge is designed to support a wide range of pressure measurement and calibration applications. Equipped with Data Logging and Bluetooth technology, it delivers exceptional value and performance. The rugged IP67 housing ensures reliability in harsh outdoor environments, while the optional Intrinsically Safe (Ex) version provides certified safety for hazardous areas.
Key Features:
- Wide Pressure Range: Up to 60,000 psi (4,200 bar).
- High Accuracy: Options for 0.1% or 0.2% FS (Full Scale).
- Massive Data Storage: Logs up to 800,000 records.
- Safety First: Intrinsically Safe (ADT680AEx) models available for explosive environments.
- Rugged Construction: Fully welded sensor within a stainless steel housing (IP67 Rated).
- Long Battery Life: Up to 4,000 hours of continuous operation.
- Display: Large, easy-to-read screen with backlight.
- Connectivity: Bluetooth and RS232 support; compatible with the Additel Link Mobile App.
Detailed Benefits:
- Durability: Constructed with high-quality materials, the ADT680A features a robust stainless steel housing and a tuned internal sensor designed for years of reliable operation. The IP67 rating ensures protection against dust and moisture, while the device is tested to withstand 5g vibration and 10g shock. Corrosion-resistant wetted parts protect the internal mechanism from harsh media.
- Easy-To-Use: Designed for technicians with tight schedules, the ADT680A eliminates frustration with smooth, responsive membrane buttons. The display is clear even in direct sunlight, and the one-touch backlight ensures visibility in low-light conditions. Large digits allow pressure readings to be seen from a distance, making it perfect for calibration and inspection tasks.
- Easy To Maintain: The membrane keypad is easy to clean, and the exceptional battery life means maintenance is minimal and infrequent.
