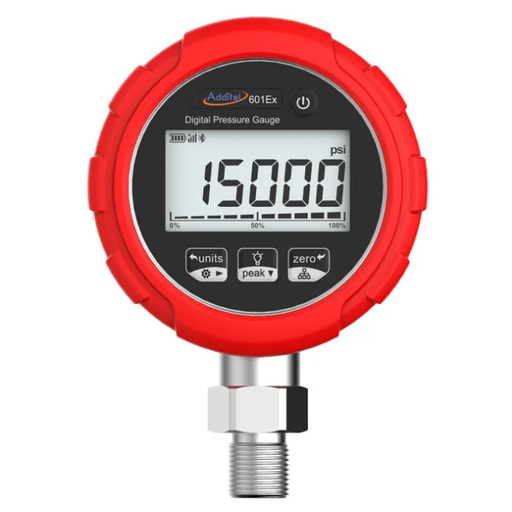

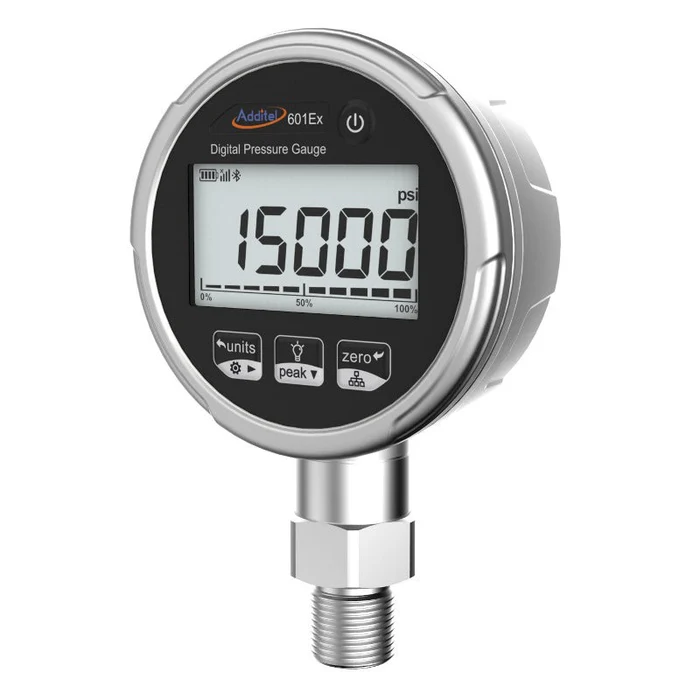

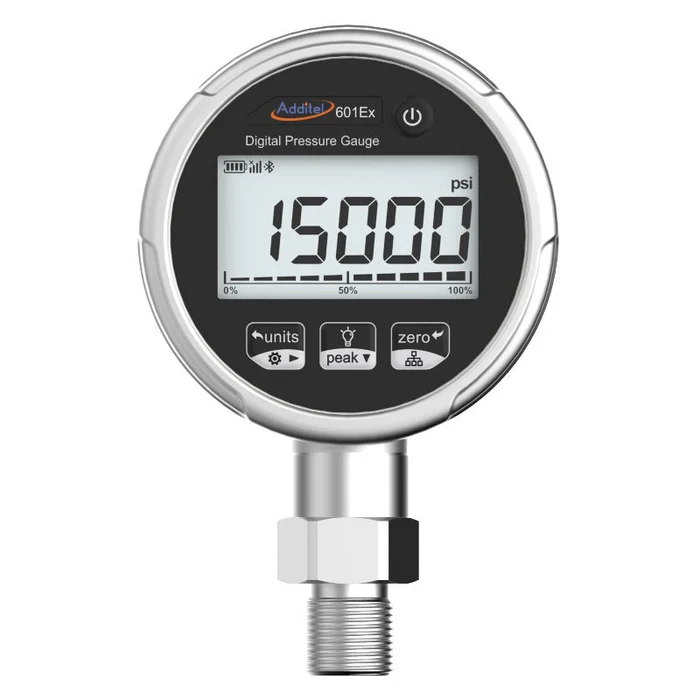

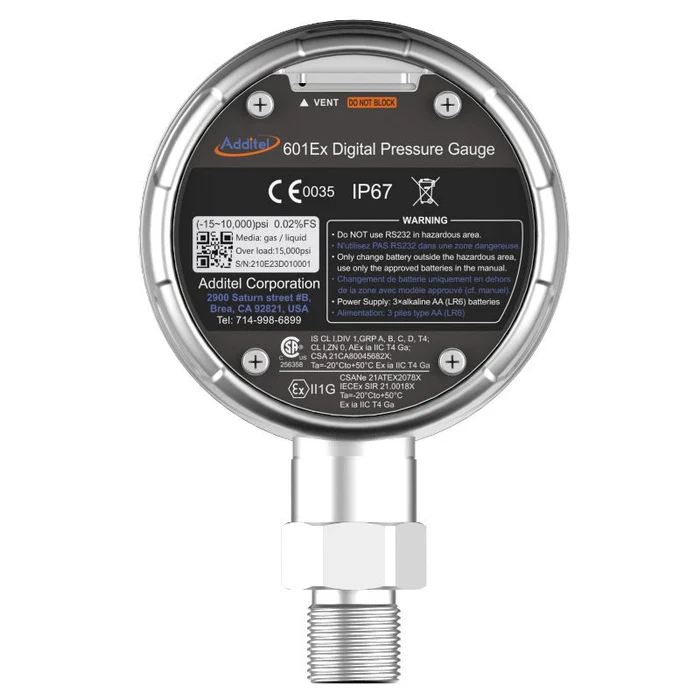

Additel 601Ex (Intrinsically Safe) is a digital pressure gauge designed to be the modern, high-performance upgrade to traditional dial gauges. It brings digital accuracy and reliability to the field at a cost-effective price. Equipped with Bluetooth technology, it allows users to monitor pressure remotely via a mobile phone, making it indispensable for field inspections.
Key Certifications & Safety:
- Intrinsically Safe: Certified to the strictest ATEX and IECEx standards (Level Ex ia IIC T4 Ga).
- Hazardous Area Ready: Safe for use in explosive gas environments, including Oil & Gas platforms, Refineries, Chemical/Petrochemical plants, Pharmaceutical manufacturing, and Energy processing facilities.
Technical Specifications:
- Pressure Range: -15 psi (-1 bar) to 15,000 psi (1,000 bar).
- Accuracy: 0.5% FS (Full Scale).
- Temperature Compensation: Full range (-20°C to 50°C).
- Battery Life: Up to 9,000 hours of continuous operation.
- Protection: IP67 (Dust and Water resistant).
Key Features:
- Durability: Built to survive the toughest conditions, the ADT601Ex features a Stainless Steel housing and a fully welded silicon piezoresistive sensor. It is tested to withstand a 1-meter drop, 5g vibration, and 10g shock. It also includes 3X Overpressure Protection to prevent sensor damage from pressure spikes.
- Easy-To-Use: The interface is designed for efficiency. It features a simple button layout, a backlit display for low-light areas, and large digits readable from a distance. A visual Pressure Trend Bar helps technicians quickly analyze pressure changes.
- Easy Maintenance: The membrane buttons are easy to wipe clean, and the ultra-long battery life ensures maintenance requirements are kept to a minimum.
